FOR SALE FOR REMOVAL

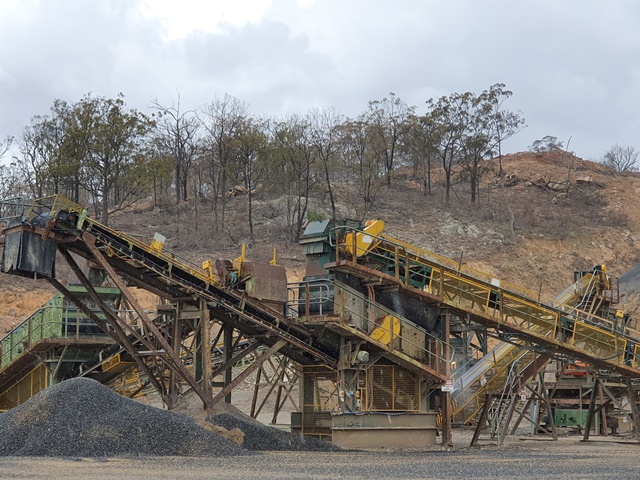

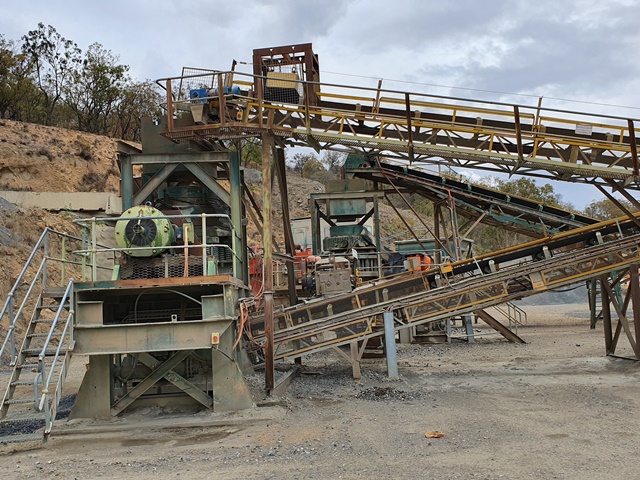

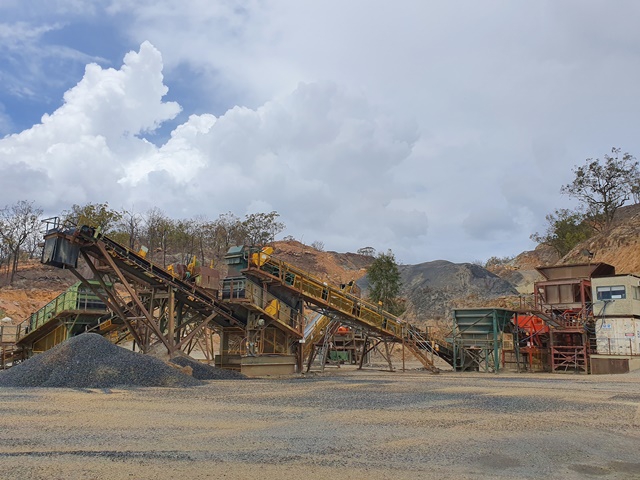

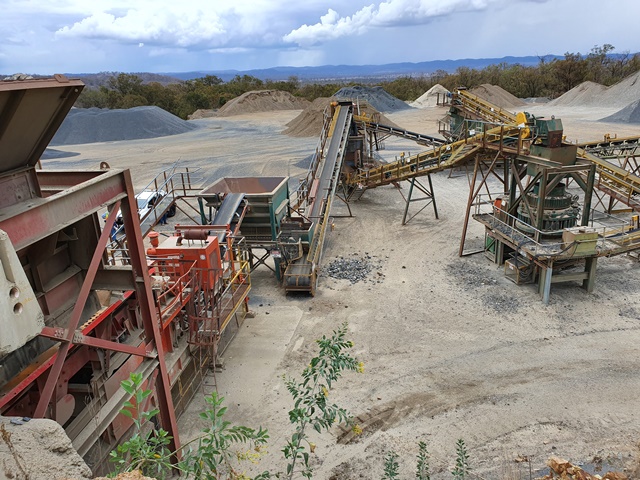

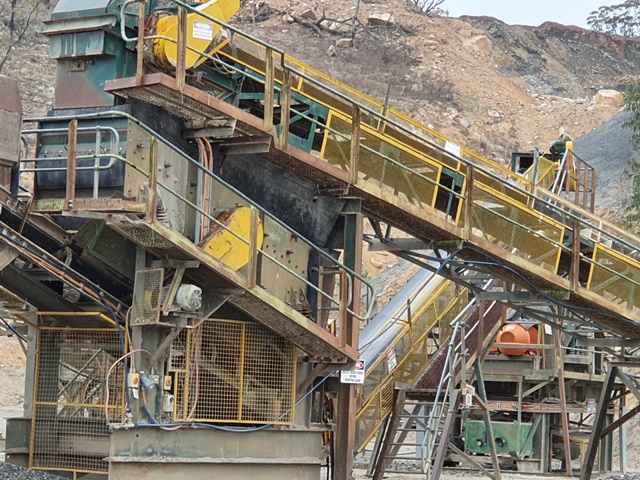

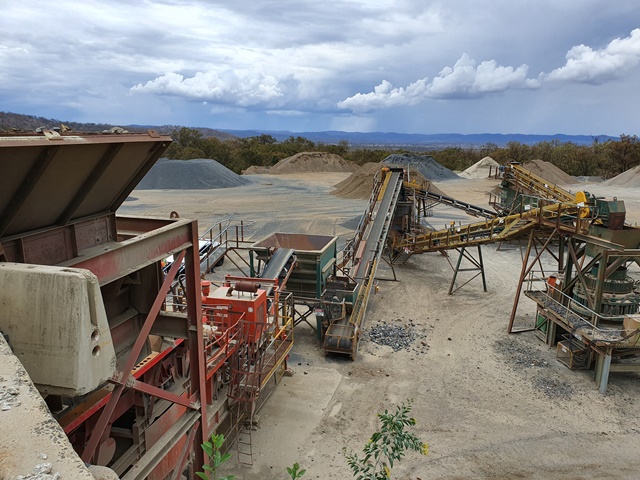

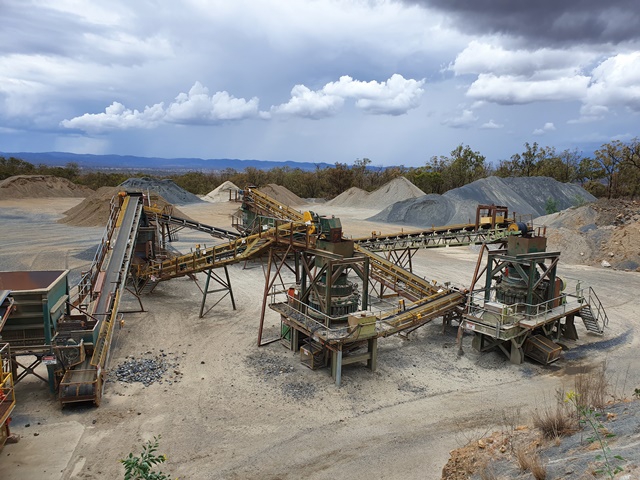

FIXED CRUSHING AND SCREENING PLANT
FOR SALE FOR REMOVAL
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge

Major Components Include:

  • Fabricated Primary Feed Hopper erected to suit Mobile Primary Crushing Module
  • Primary Crushing Module - Mobile 42/27 Brown-Lennox, Double Toggle Jaw Crusher Powered by Caterpillar Diesel Engine, Grizzly Feeder, Hopper and Discharge Conveyor C1 (Painted Orange). All mounted on a Tri-Axle Semi-Trailer with Kingpin
  • Surge Hopper with Discharge Belt CV2
  • Conveyor CV3 to Screen 1
  • No. 1 Screen - Jacques Vibrating 2-Deck Screen 12x5
  • Conveyor C4 Screen to Secondary
  • Secondary Crushing Module - Pegson 48S" Cone Crusher Complete with 150HP Electric Motor and Oil Lubrication System
  • Conveyors CV5 and CV6 (Secondary to Screen 2)
  • No. 2 Screen - Hawkes Vibrating 3 Deck 16x6
  • Conveyor CV7 (Screen 2 to Tertiary)
  • Tertiary Crushing Module - Symons 4 1/4" Shorthead Cone Crusher Complete with 200HP Electric Motor and Oil Lubrication System
  • Conveyors CV7 (Tertiary to CV6 and to No. 2 Screen)
  • Conveyor CV8 (Screen Underflow to CV9)
  • CV 9 (Screen 1 and Screen No. 2 Screen Underflows to Stockpile)
  • Electric Control Centre, Main Isolator, Power Factory Correction Unit, Earth Leakage Protection etc.
  • Plant includes Deutz Generator 500kVA, Metal Detector, Guarding, Emergency Stops, Lanyards etc
